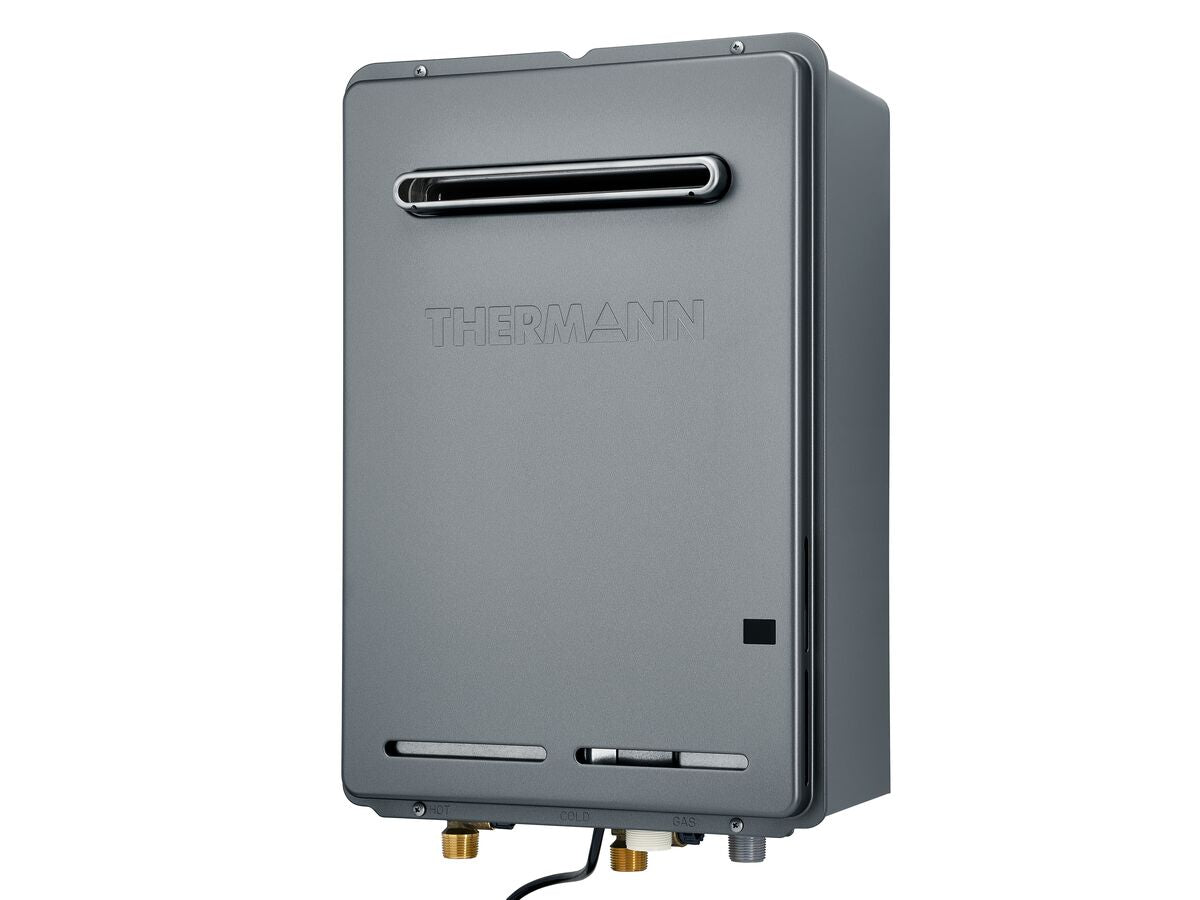

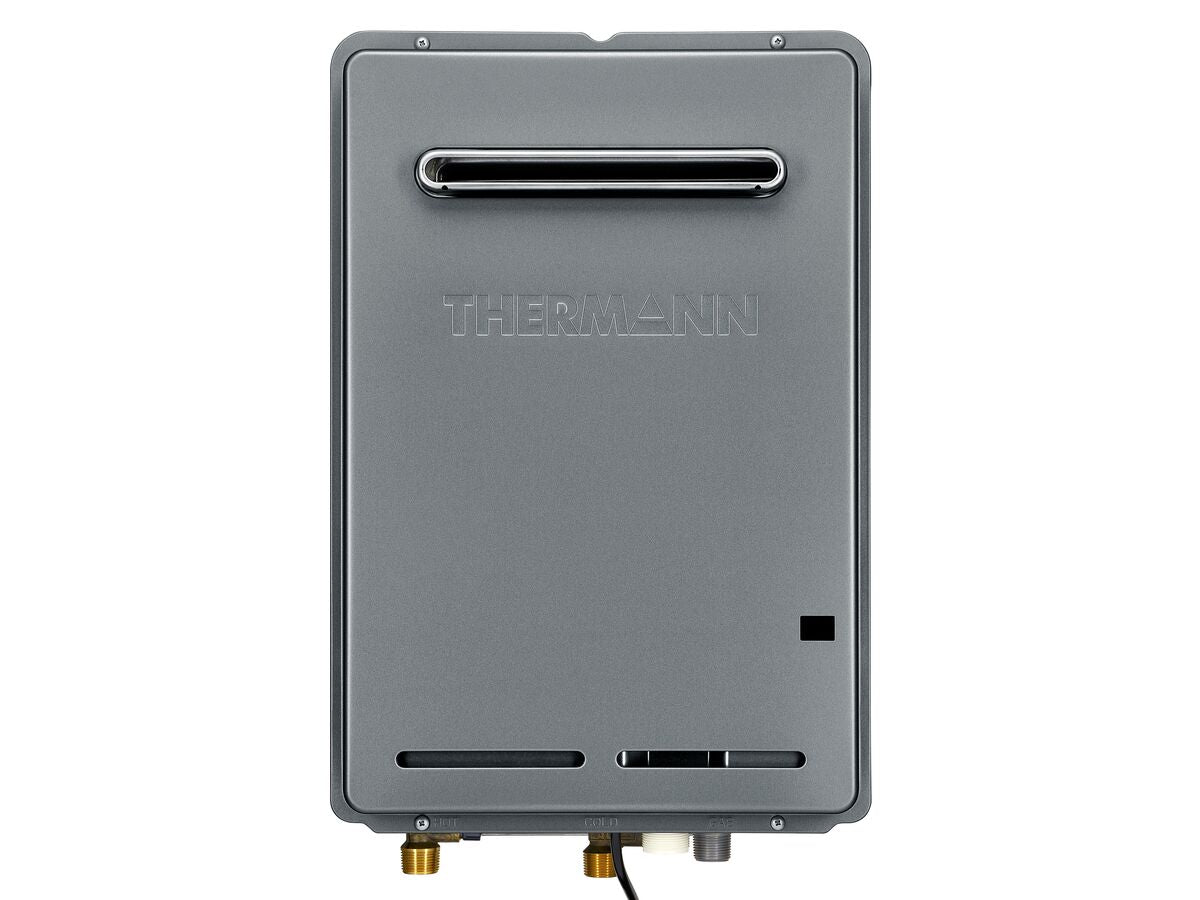

Thermann G-Series 26L 60 degree LPG Continous Flow Hot Water System
Regular price
$1,055.00
Regular price
$1,205.00
Sale price
$1,055.00
Unit price
per
Thermann G Series
The G-Series is the newest model in the Thermann Continuous Flow range and is the upgraded model from the existing Thermann 6 Star. The new G-series has been designed with Australian plumbers in mind with upgraded internal components, improving maintenance and serviceability. The new range also features a striking gunmetal finish.
Product Specifications

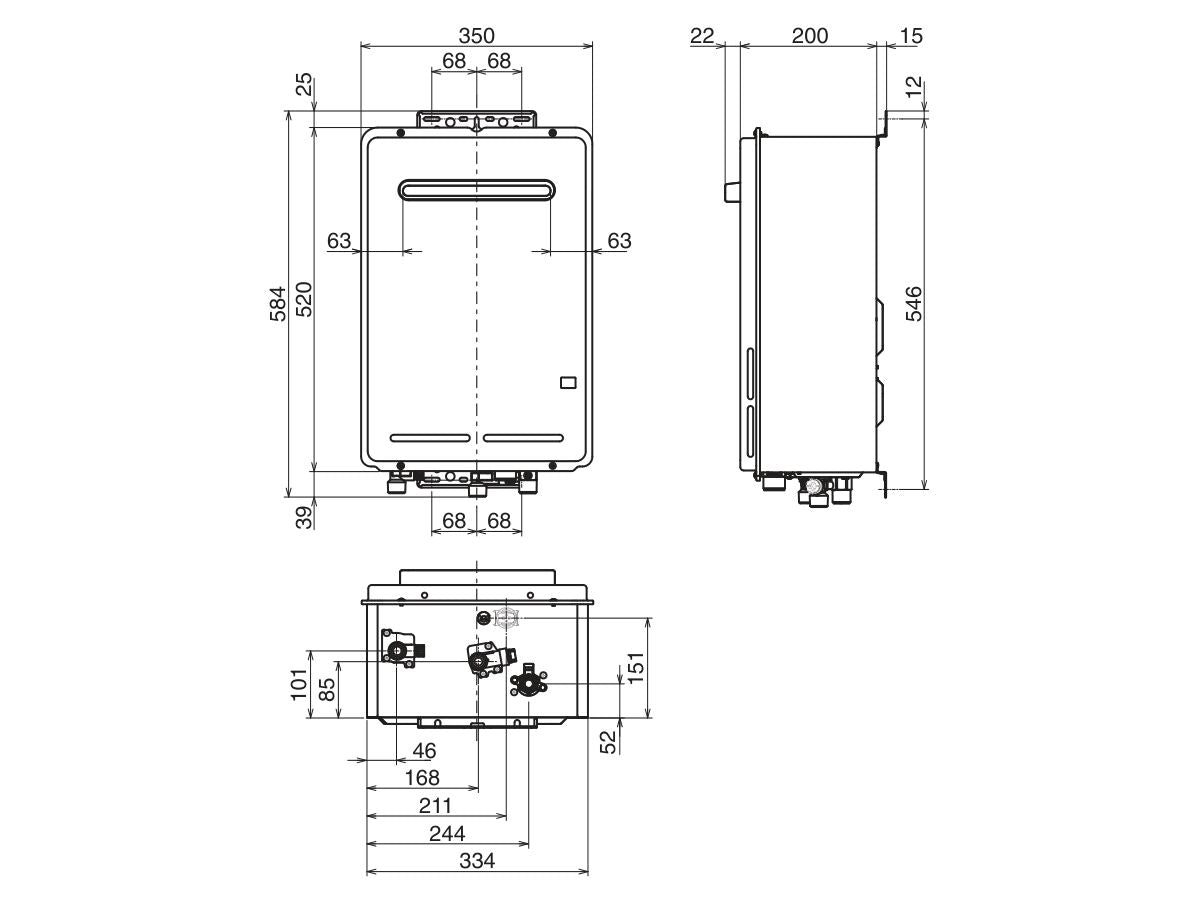

Size and Dimensions
Weight (Device Only) | 15 kg |
---|---|
Width | 350 mm |
Depth | 520 mm |
Height | 200 mm |
Features
Japanese-designed and manufactured | |
Available in 16L, 20L & 26L models, all in NG/LPG & 50 Degree C/60 Degree C models | |
Environmentally conscious (lead free internals & eco-packaging) | |
Includes a 12 Year Heat Exchanger and 3 Year Parts & Labour warranty | |
Achieves up to a 6.8* star equivalent energy rating |
General Information
No. Of Outlets | 2 to 3 |
---|---|
Gas Type | LPG |
Technical Information
Delivery Capacity (At 25 Deg C Rise) | 26 ltr/min |
---|---|
Delivery Capacity (At 40 Deg C Rise) | 16.3 ltr/min |
Continuous Flow Unit - Gas Consumption | 199 MJ/h |
Gas Inlet Connection Male Thread | R3/4" (20mm) |
Cold Water Connection Male Thread | R3/4" (20mm) |
Hot Water Connection Male Thread | R3/4" (20mm) |
Pressure Information
Continuous Flow Unit - Maximum Water Pressure | 1300 kPa |
---|---|
Continuous Flow Unit - Minimum Water Pressure | 105 kPa |
Maximum Inlet Pressure | 7 kPa |
Minimum Inlet Pressure | 2.75 kPa |
Relief Valve Setting | 1600 kPa |
Testing Pressure | 1.26 kPa |
Power Information
Energy Rating | 6.7 |
---|---|
Input Voltage | 240 V |
Output Current | 0.46 (Maximum) |
