Thermann

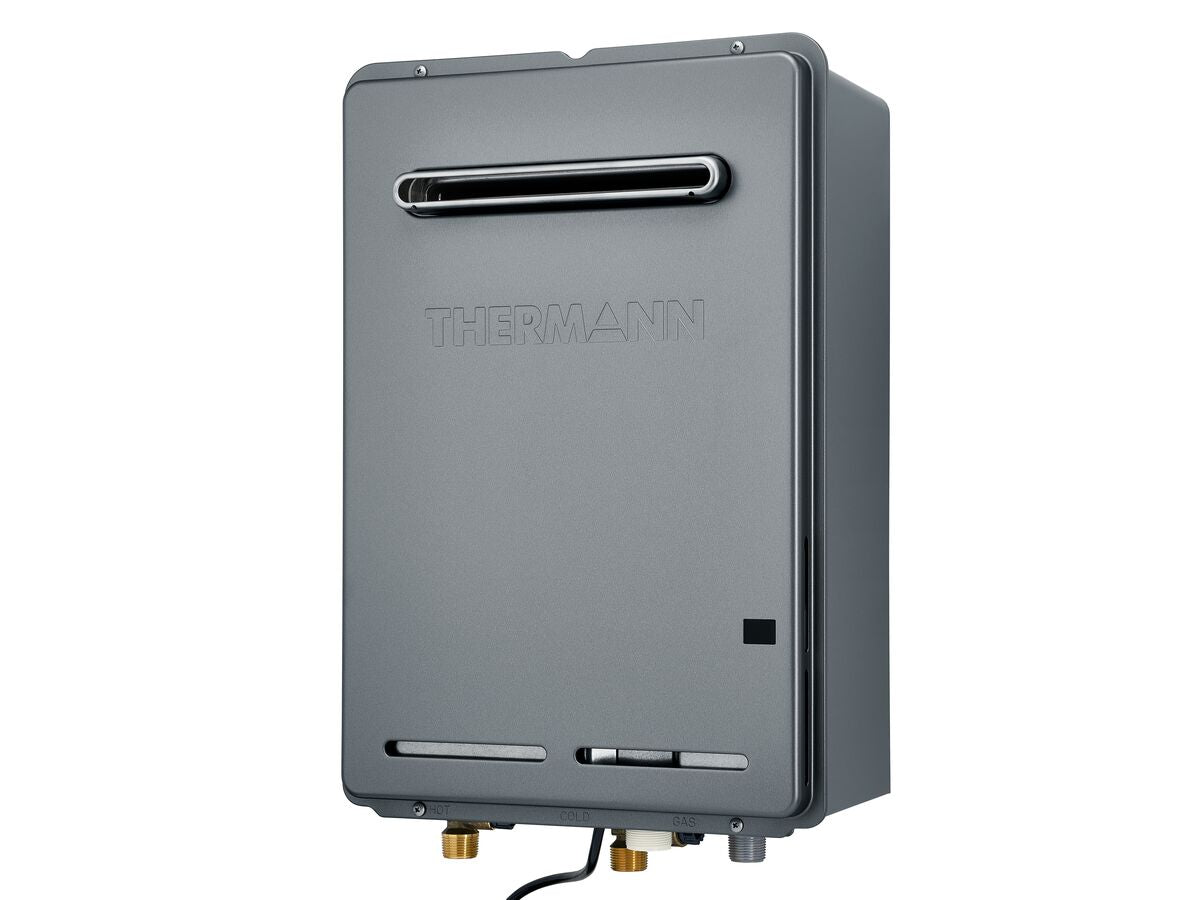

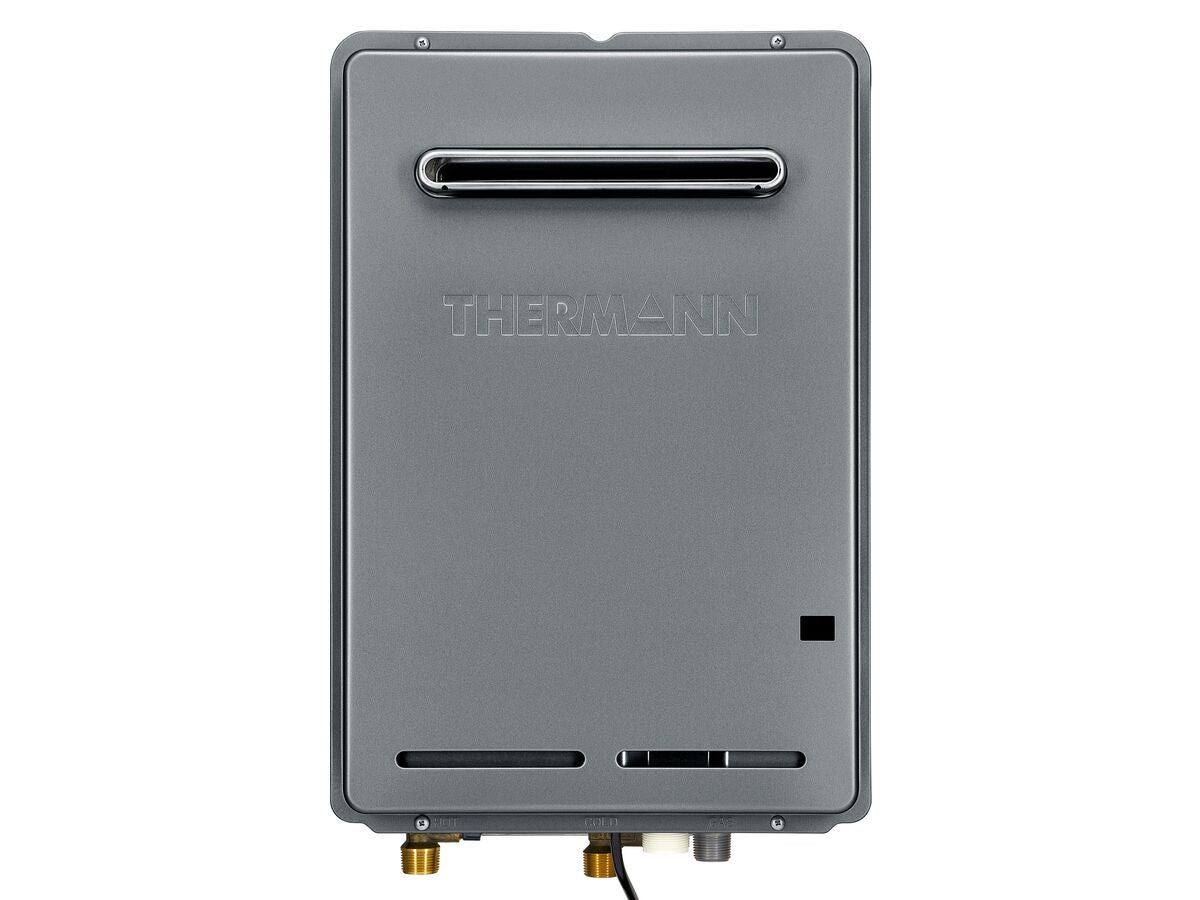

Thermann G-Series 26L 50 degree Natural Gas Continous Flow Hot Water System
Regular price
$1,098.00
Regular price
Sale price
$1,098.00
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Thermann G Series
The G-Series is the newest model in the Thermann Continuous Flow range and is the upgraded model from the existing Thermann 6 Star. The new G-series has been designed with Australian plumbers in mind with upgraded internal components, improving maintenance and serviceability. The new range also features a striking gunmetal finish.
Product Specifications
Size and Dimensions
| Weight (Device Only) | 15 kg |
|---|---|
| Width | 350 mm |
| Depth | 520 mm |
| Height | 200 mm |
Features
| Japanese-designed and manufactured | |
| Available in 16L, 20L & 26L models, all in NG/LPG & 50 Degree C/60 Degree C models | |
| Environmentally conscious (lead free internals & eco-packaging) | |
| Includes a 12 Year Heat Exchanger and 3 Year Parts & Labour warranty | |
| Achieves up to a 6.8* star equivalent energy rating |
General Information
| No. Of Outlets | 2 to 3 |
|---|---|
| Gas Type | Natural Gas |
Technical Information
| Delivery Capacity (At 25 Deg C Rise) | 26 ltr/min |
|---|---|
| Delivery Capacity (At 40 Deg C Rise) | 16.3 ltr/min |
| Continuous Flow Unit - Gas Consumption | 199 MJ/h |
| Gas Inlet Connection Male Thread | R3/4" (20mm) |
| Cold Water Connection Male Thread | R3/4" (20mm) |
| Hot Water Connection Male Thread | R3/4" (20mm) |
Pressure Information
| Continuous Flow Unit - Maximum Water Pressure | 1300 kPa |
|---|---|
| Continuous Flow Unit - Minimum Water Pressure | 105 kPa |
| Maximum Inlet Pressure | 5 kPa |
| Minimum Inlet Pressure | 1.13 kPa |
| Relief Valve Setting | 1600 kPa |
| Testing Pressure | 0.77 kPa |
Power Information
| Energy Rating | 6.7 |
|---|---|
| Input Voltage | 240 V |
| Output Current | 0.46 (Maximum) |
