Thermann

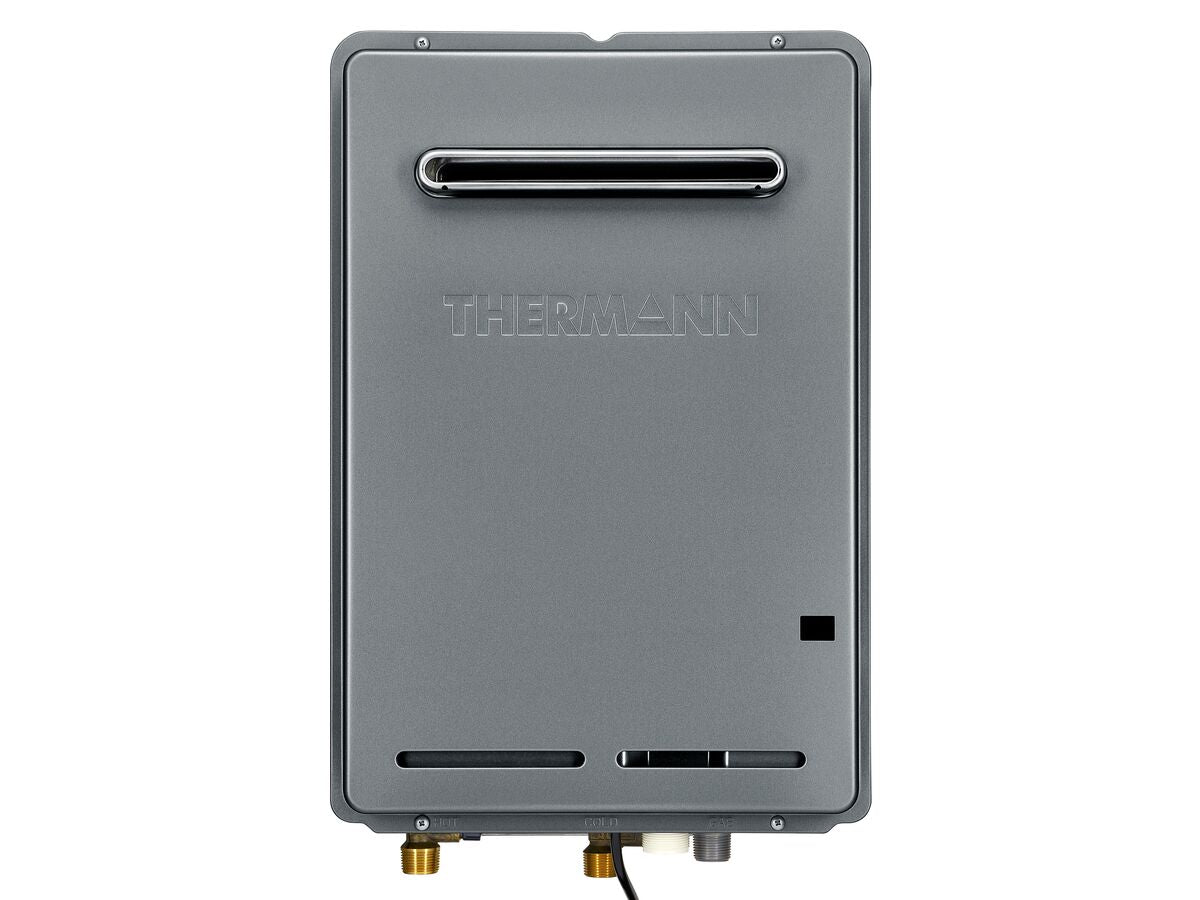

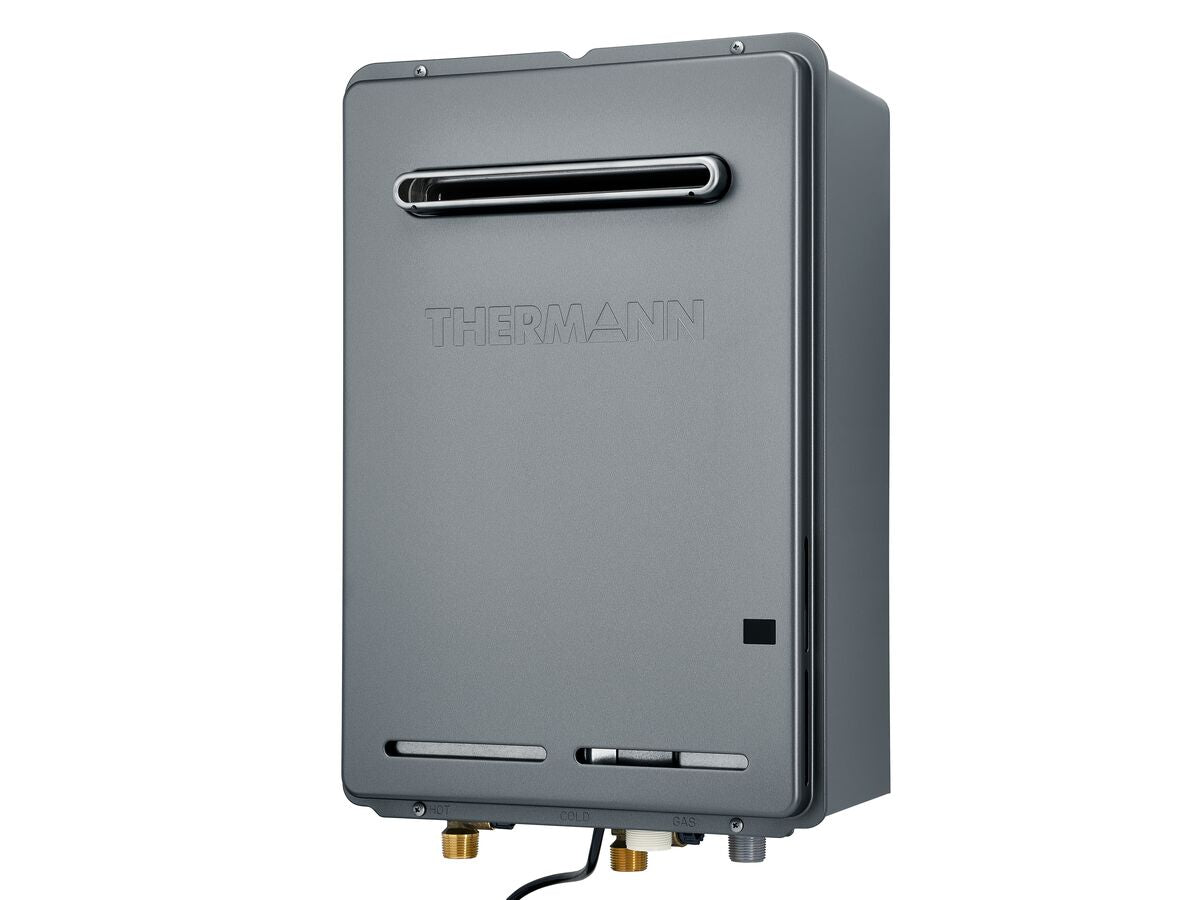

Thermann G-Series 20L 60 degree N/G Continous Flow Hot Water System

Name: Thermann G-Series 20L 60 degree N/G Continous Flow Hot Water System
Brand: Thermann
Price: 998.0 AUD
Availability: InStock

$998.00

~~$1,120.00~~ $998.00

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

Thermann G Series

The G-Series is the newest model in the Thermann Continuous Flow range and is the upgraded model from the existing Thermann 6 Star. The new G-series has been designed with Australian plumbers in mind with upgraded internal components, improving maintenance and serviceability. The new range also features a striking gunmetal finish.

Product Specifications

Size and Dimensions

Weight (Device Only)	14 kg
Width	350 mm
Depth	520 mm
Height	200 mm

Features

	Japanese-designed and manufactured
	Available in 16L, 20L & 26L models, all in NG/LPG & 50 Degree C/60 Degree C models
	Environmentally conscious (lead free internals & eco-packaging)
	Includes a 12 Year Heat Exchanger and 3 Year Parts & Labour warranty
	Achieves up to a 6.8* star equivalent energy rating

General Information

No. Of Outlets	1 to 2
Gas Type	Natural Gas

Technical Information

Delivery Capacity (At 25 Deg C Rise)	20 ltr/min
Delivery Capacity (At 40 Deg C Rise)	13.2 ltr/min
Continuous Flow Unit - Gas Consumption	158 MJ/h
Gas Inlet Connection Male Thread	R3/4" (20mm)
Cold Water Connection Male Thread	R3/4" (20mm)
Hot Water Connection Male Thread	R3/4" (20mm)

Pressure Information

Continuous Flow Unit - Maximum Water Pressure	1300 kPa
Continuous Flow Unit - Minimum Water Pressure	70 kPa
Maximum Inlet Pressure	5 kPa
Minimum Inlet Pressure	1.13 kPa
Relief Valve Setting	1600 kPa
Testing Pressure	0.81 kPa

Power Information

Energy Rating	6.8
Input Voltage	240 V
Output Current	0.38 (Maximum)
