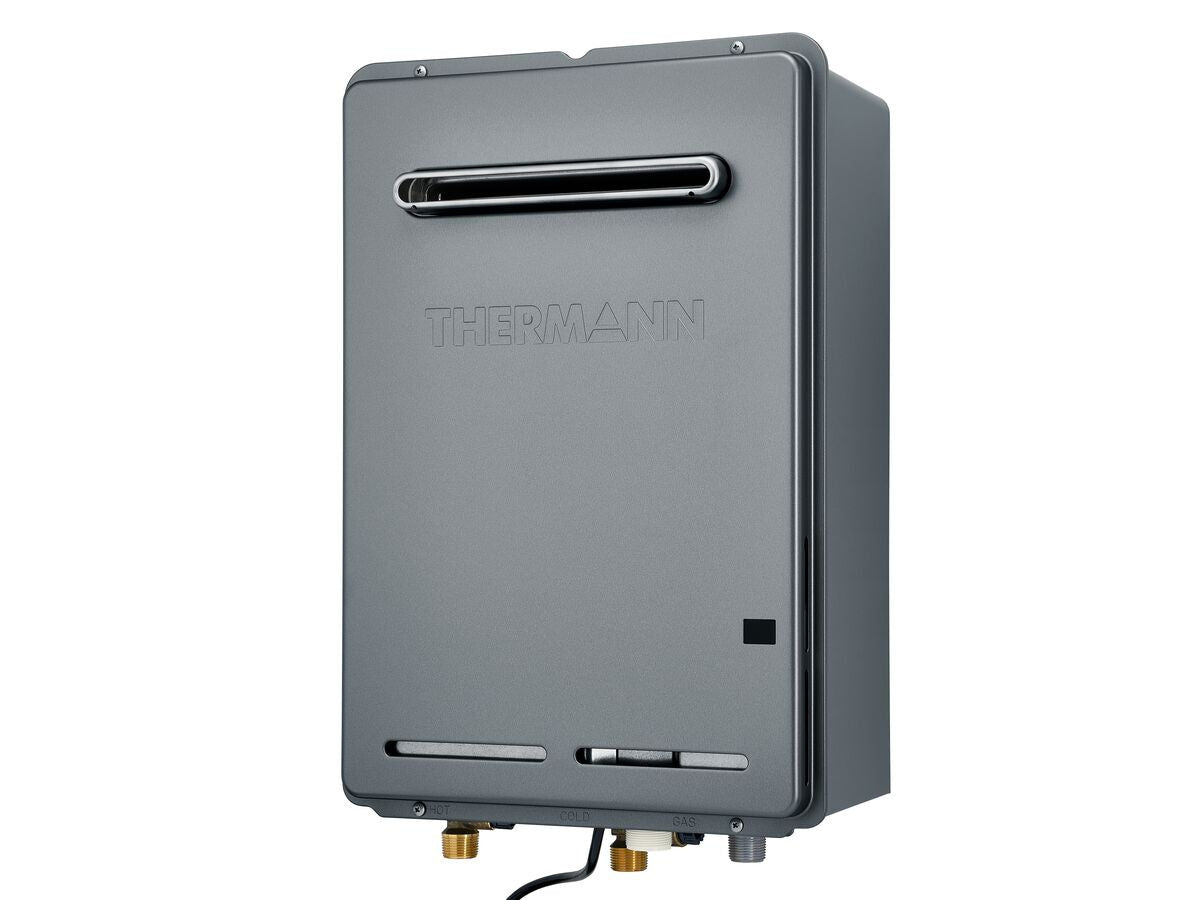

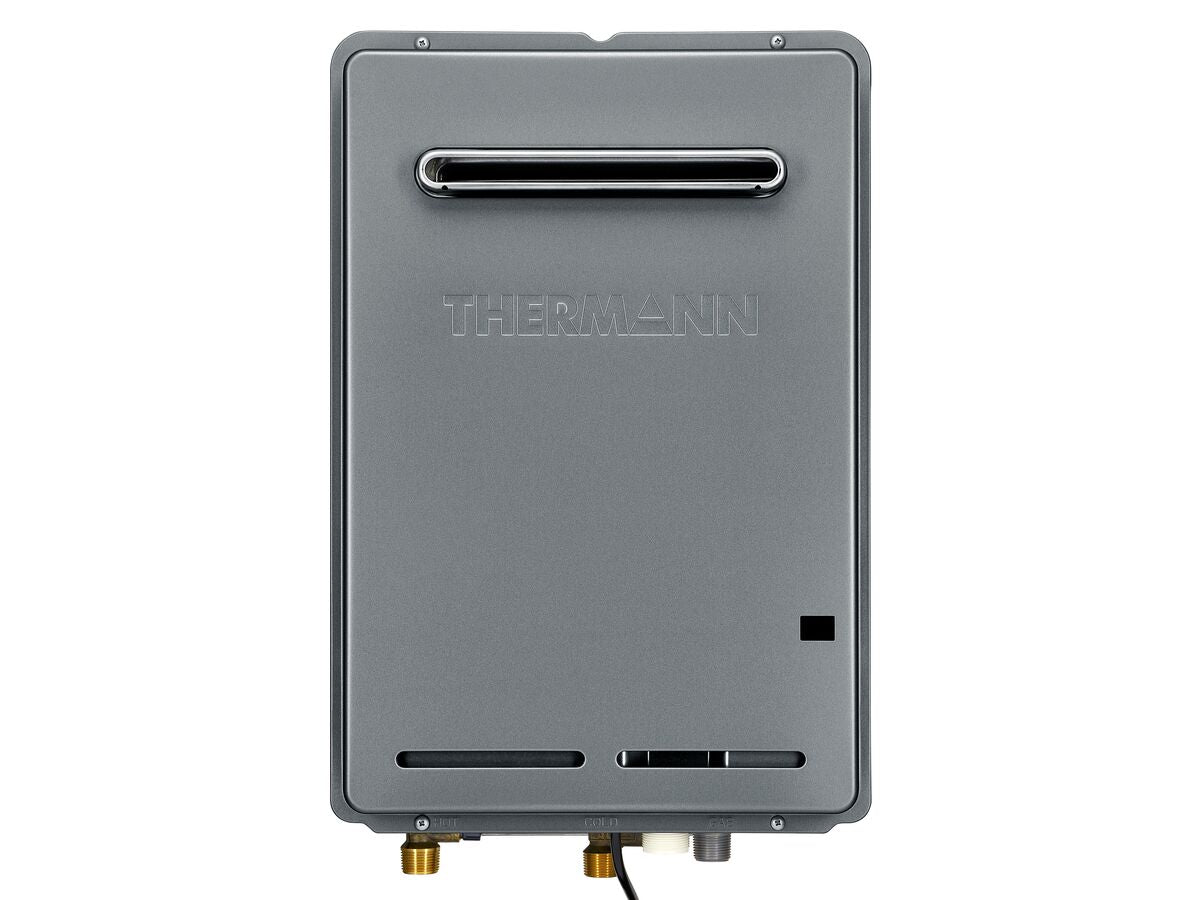

Thermann G-Series 16L 60 degree N/G Continous Flow Hot Water System
Regular price
$965.00
Regular price
$1,055.00
Sale price
$965.00
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Thermann G Series
The G-Series is the newest model in the Thermann Continuous Flow range and is the upgraded model from the existing Thermann 6 Star. The new G-series has been designed with Australian plumbers in mind with upgraded internal components, improving maintenance and serviceability. The new range also features a striking gunmetal finish.
Product Specifications
Size and Dimensions
| Weight (Device Only) | 14 kg |
|---|---|
| Width | 350 mm |
| Depth | 520 mm |
| Height | 200 mm |
Features
| Japanese-designed and manufactured | |
| Available in 16L, 20L & 26L models, all in NG/LPG & 50 Degree C/60 Degree C models | |
| Environmentally conscious (lead free internals & eco-packaging) | |
| Includes a 12 Year Heat Exchanger and 3 Year Parts & Labour warranty | |
| Achieves up to a 6.8* star equivalent energy rating |
General Information
| No. Of Outlets | 1 |
|---|---|
| Gas Type | Natural Gas |
Technical Information
| Delivery Capacity (At 25 Deg C Rise) | 16 ltr/min |
|---|---|
| Delivery Capacity (At 40 Deg C Rise) | 10.8 ltr/min |
| Continuous Flow Unit - Gas Consumption | 125 MJ/h |
| Gas Inlet Connection Male Thread | R3/4" (20mm) |
| Cold Water Connection Male Thread | R3/4" (20mm) |
| Hot Water Connection Male Thread | R3/4" (20mm) |
Pressure Information
| Continuous Flow Unit - Maximum Water Pressure | 1300 kPa |
|---|---|
| Continuous Flow Unit - Minimum Water Pressure | 50 kPa |
| Maximum Inlet Pressure | 5 kPa |
| Minimum Inlet Pressure | 1.13 kPa |
| Relief Valve Setting | 1600 kPa |
| Testing Pressure | 0.52 kPa |
Power Information
| Energy Rating | 6.8 |
|---|---|
| Input Voltage | 240 V |
| Output Current | 0.3 (Maximum) |
