Features
Australian made using state of the art machinery.
Perfect for commercial applications where reticulated gas is unavailable or flueing is impractical.
Multiple Element Configurations.
Commercial grade, heavy duty Y grade enamel.
Adjustable thermostat setting.
Can be manifolded for heavier demand or plumbed to additional water heater systems for supplementary boosting.

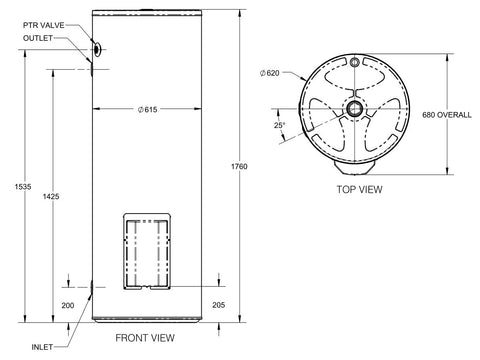

Size and Dimensions
Diameter 615mm
Height 1767mm
Approx Weight (empty) 93kg
Capacity 315ltr
General Information
Installation Internal/External
Model Number 315THMC360
Product Type Electric
Technical Information
Number of Elements Triple Element
Element Size 6.0 kW
Cold Water Connections 32mm
Hot Water Connections 32mm
Hot Water Recovery Rate 310L/h @ 50 Deg rise
Power Supply 415V
Pressure Information
Expansion Control Valve Setting 850 kPa
Maximum Supply Pressure - with ECV 800 kPa
Maximum Supply Pressure - without ECV 650 kPa
Relief Valve Setting 1000 kPa
