Rinnai 160L Electric 1.8kW - EHFA160S18

Warranty Information

Cylinder warranty - 10 years

See the full Rinnai warranty at www.rinnai.com.au/warranty

Product Specifications

Features

Vitreous Enamel lined steel tank for added durability

Inbuilt enhanced sacrificial anode extends the life of the hot water tank.

Thermostatically controlled with safety temperature shut off

Perfect for medium sized families.

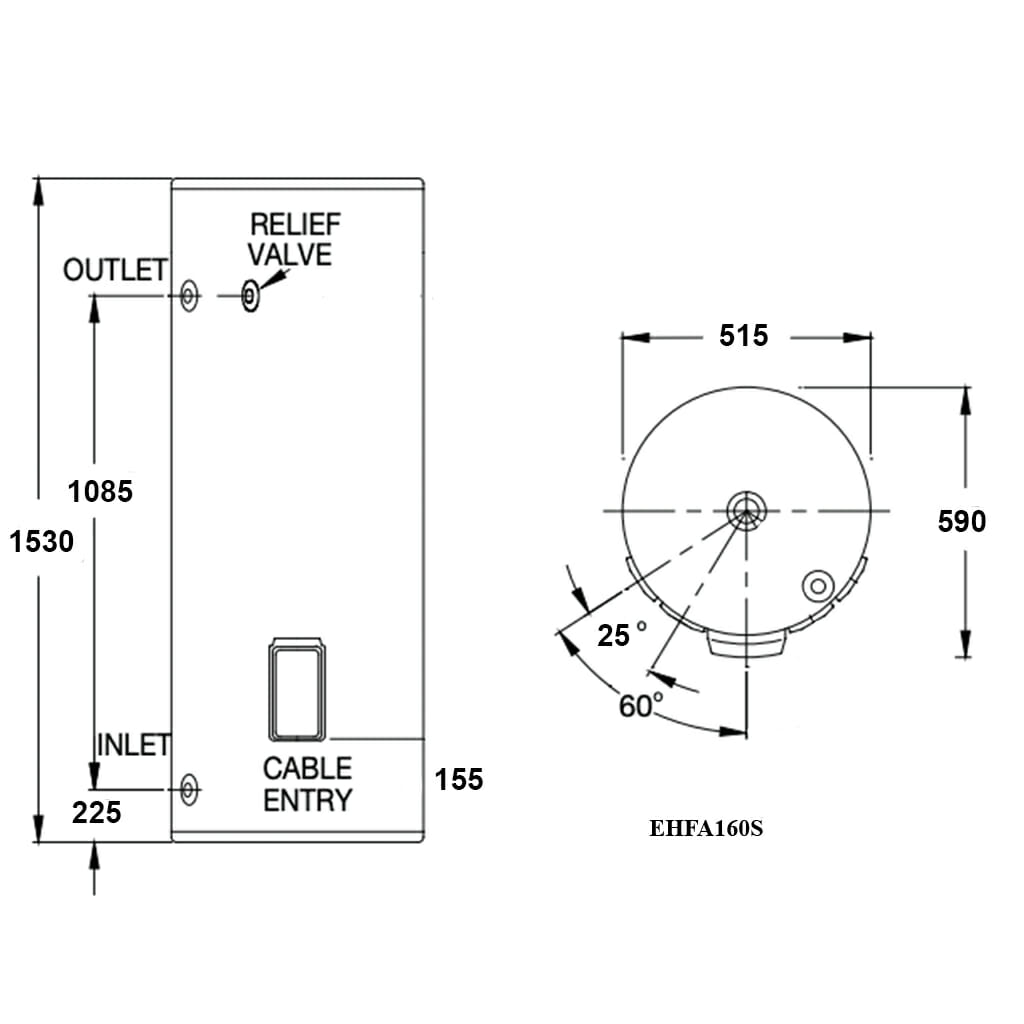

Size and Dimensions

Diameter 515mm

Height 1530mm

Approx Weight (empty) 71kg

Capacity 160ltr

General Information

Installation Internal/External

Model Number EHFA160S

Product Type Electric

Tank Material Vitreous Enamel

Technical Information

Number of Elements Single Element

Element Size 1.8 kW

System Connections Dual Handed

Cold Water Connections 20mm

Hot Water Connections 20 mm

Pressure Information

Expansion Control Valve Setting 850 kPa

Maximum Supply Pressure - with ECV 680 kPa

Maximum Supply Pressure - without ECV 800 kPa

Relief Valve Setting 1000 kPa

Further Information

Impressive Hot Water Tank for medium sized families

With the ability to provide consistent hot water for up to 4-5 people, the Rinnai 160L Electric Hot Water System perfectly suits medium-sized Brisbane and Logan households.

Designed for peace-of-mind, the hot water tanks are thermostatically controlled with safety temperature shut off and the unique blend of enamel and enhanced sacrificial anode protection extends its lifespan.

Featuring single element, standard sizing for emergency changeovers and with internal / external applications available, updating existing or installing new hot water tanks is a breeze with minimal changeover costs.
