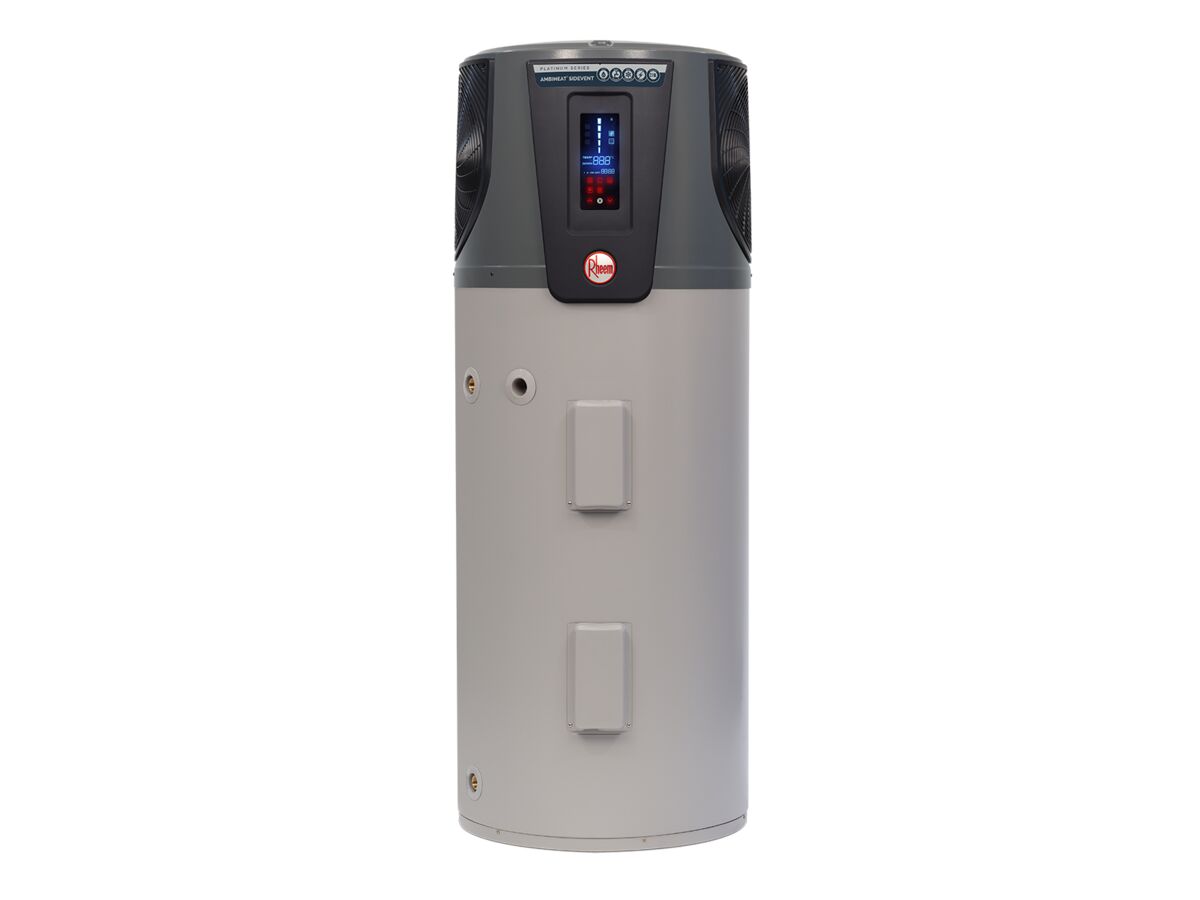

Rheem Ambiheat 270L Side-Vent Heat Pump (2.4kW)

Spare parts & Labour (Domestic Use) - 12 months

Cylinder Warranty (Domestic) - 7 years

See the full Rheem warranty at www.rheem.com.au/warranty

Features

Energy Efficient - Cuts energy use and greenhouse gas emissions by up to 65%

Back-Up Element - delivering 60 Degree C hot water, even on the coldest winter nights

Compact footprint, similar to electric water heater

Size and Dimensions

Depth 709mm

Width 700mm

Height 1823mm

Approx Weight (empty) 145kg

General Information

InstallationExternal

Model Number HDC270

Product Type Heat Pump

Technical Information

Refrigerant Type R134a

Tank Capacity 270 ltr

Sound Level 1m: 47 decibels,2m: 44 decibels

Water Connections R3/4" (20mm)

Pressure Information

Expansion Control Valve Setting 850 kPa

Maximum Supply Pressure - with ECV 800kPa

Maximum Supply Pressure - without ECV 680kPa

Relief Valve Setting 1000kPa

The AMBIHEAT HDc-270 Heat Pump is an integrated heat pump with advanced wrap around microchannel heating technology for uniform and faster water heating. It is suitable for cold climates and harsh water conditions. Uses Magnesium Anode suitable for areas with total dissolved solids (TDS) content.
