Features
Designed for large scale commercial applications and most water chemistries.
The 3 element 50 litre Heavy Duty Electric water heater has an hourly recovery rate of up to 250 litres of hot water at 50 Deg C rise, suitable for high demand hot water usage.
Trade adjustable thermostats.

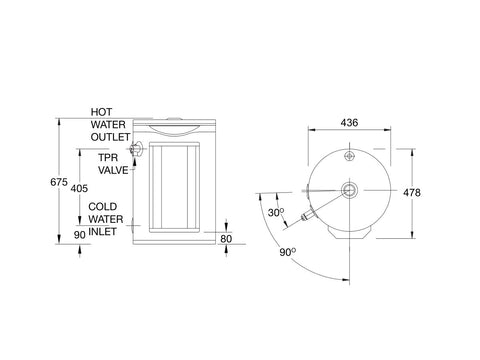

Size and Dimensions
Width 436mm
Depth 476mm
Height 675mm
Approx Weight (empty) 32kg
Capacity 60 ltr
General Information
Installation Internal/External
Model Number 61305007
Product Type Electric Commercial
Technical Information
Number of Elements Triple Element
Element Size 3.6 kW
System Connections Left Handed
Inlet Connections Rp1 1/4"
Outlet Water Connections Rp1 1/4"
Power Supply 415V
Pressure Information
Expansion Control Valve Setting 850kPa
Maximum Supply Pressure - with ECV 680 kPa
Maximum Supply Pressure - without ECV 800 kPa
Relief Valve Setting 1000 kPa
