Features
The most compact system available in the over 40L range.
One of the smallest diameters on the market.
Designed for restricted space installations with recessed plug fittings.

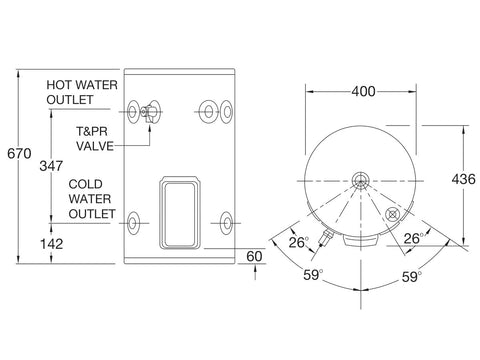

Size and Dimensions
Width 400mm
Depth 436mm
Height 670mm
Approx Weight (empty) 23kg
Capacity 47 ltr
General Information
Hard Water Applicable No
Installation Internal/External
Model Number 191045G7
Product Type Electric
Tank Material Vitreous Enamel
Technical Information
Number of Elements Single Element
Element Size 3.6 kW
System Connections Dual Handed
Cold Water Connections 20mm
Hot Water Connections 20mm
Pressure Information
Expansion Control Valve Setting 1200 kPa
Maximum Supply Pressure - with ECV 960 kPa
Maximum Supply Pressure - without ECV 1120 kPa
Relief Valve Setting 1400 kPa
