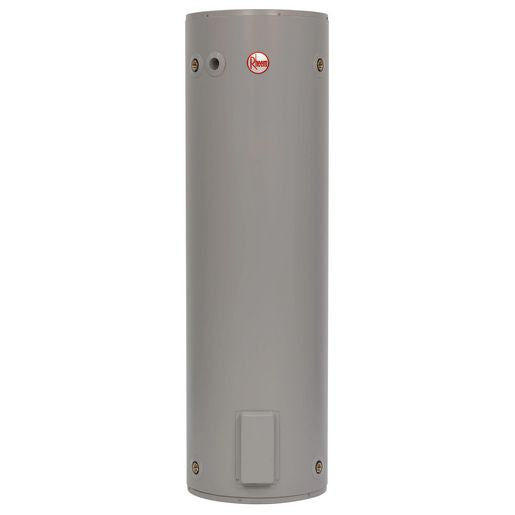

Rheem 160L Single Element Electric Hot Water System (3.6kW)

Spare parts & Labour (Domestic Use) - 12 months

Cylinder Warranty (Domestic) - 12 years

See the full Rheem warranty at www.rheem.com.au/warranty

Features

Rheem Ultranamel is a tough and durable coating that protects the cylinder.

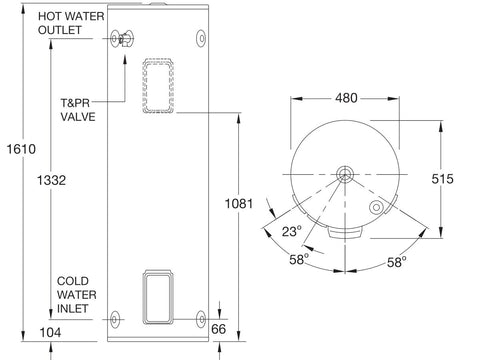

Size and Dimensions

Width 480mm

Depth 515mm

Height 1610mm

Approx Weight (empty) 55kg

Capacity 160 ltr

General Information

Hard Water Applicable No

Installation Internal/External

Model Number 491160G7

Product Type Electric

Tank Material Vitreous Enamel

Technical Information

Number of Elements Single Element

Element Size 3.6 kW

System Connections Dual Handed

Cold Water Connections 20mm

Hot Water Connections 20mm

Pressure Information

Expansion Control Valve Setting 1200 kPa

Maximum Supply Pressure - with ECV 960 kPa

Maximum Supply Pressure - without ECV 1120 kPa

Relief Valve Setting 1400 kPa

For further information about this system, please contact us.
