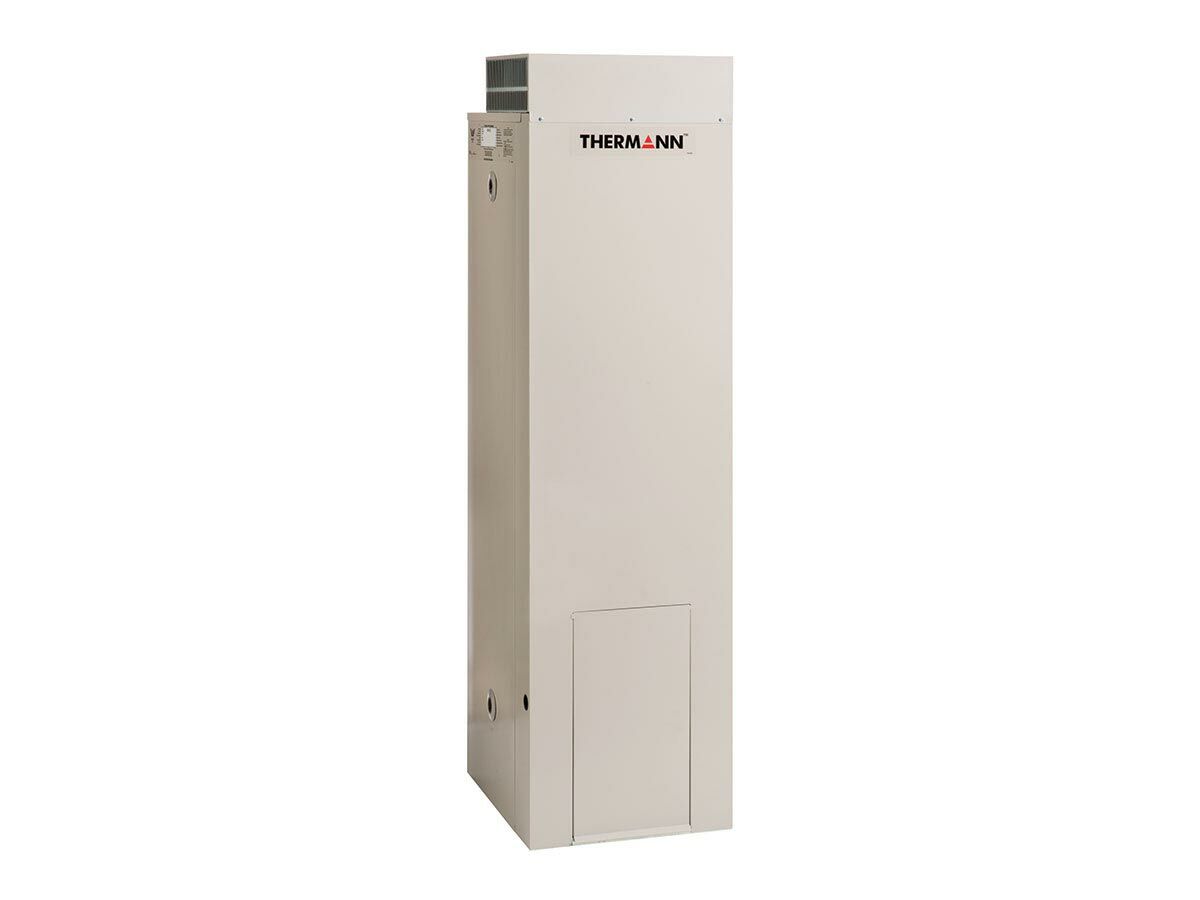

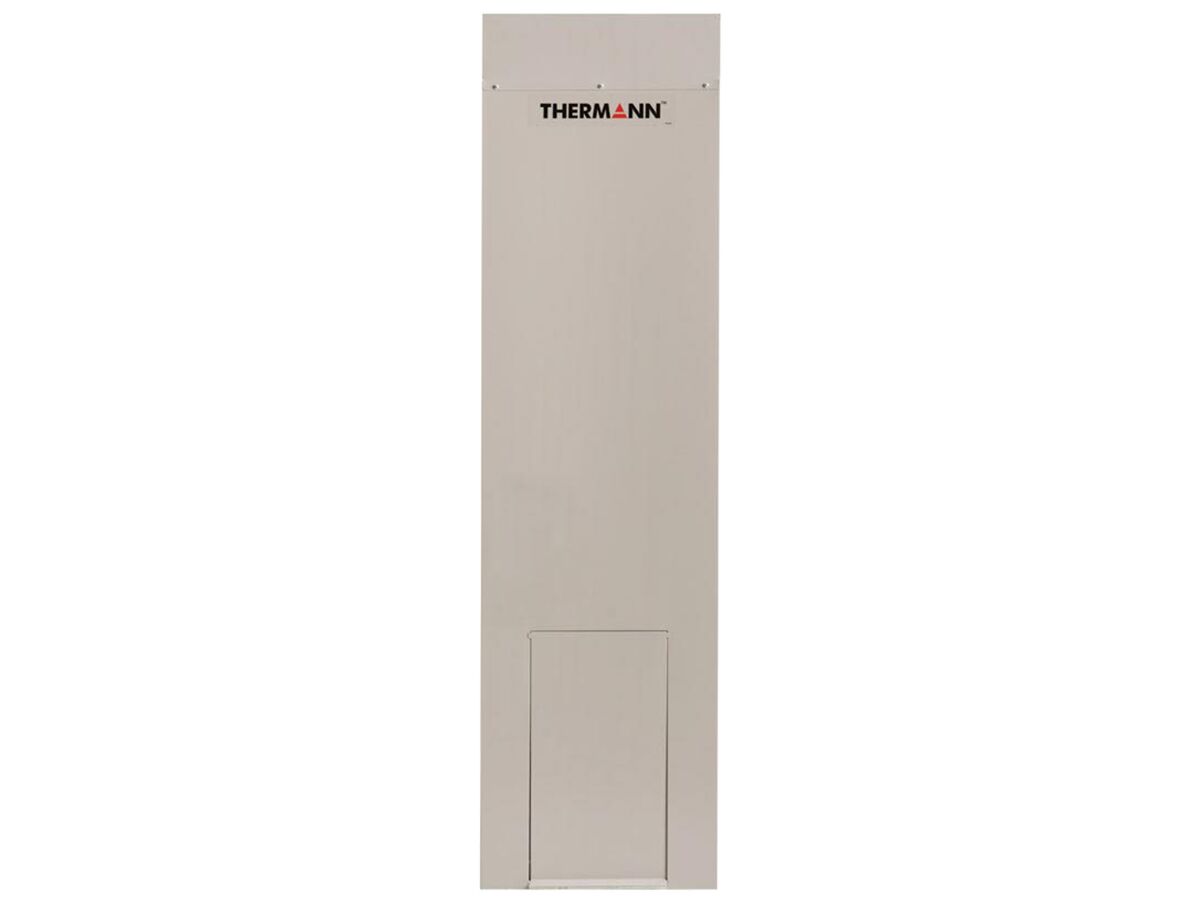

Thermann 4 Star 135L Natural Gas Hot Water System
Regular price
$1,255.00
Regular price
$1,299.00
Sale price
$1,255.00
Unit price
per
Thermann 4 Star
The Thermann 135L gas storage system is designed for areas needing mediumcapacity hot water to be installed into an outdoor space.
Product Specifications

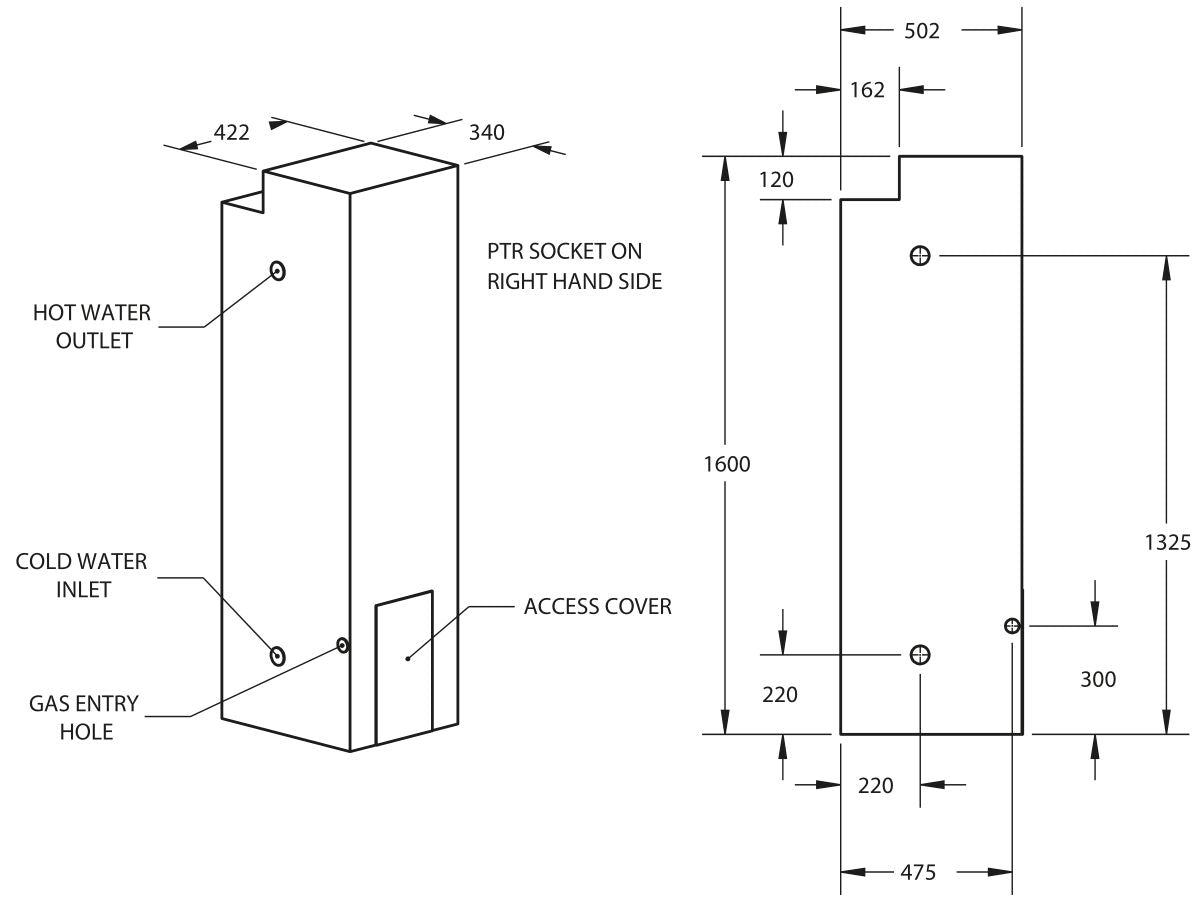

Size and Dimensions
Width | 422 mm |
---|---|
Depth | 502 mm |
Height | 1600 mm |
Approximate Weight (Empty) | 72 kg |
Inlet Height | 220 mm |
Inlet Height (Gas) | 300 mm |
Outlet Height | 1325 mm |
General Information
No. Of Bathrooms | 1 to 2 |
---|---|
No. Of People | 3 to 4 |
Gas Type | Natural Gas |
Installation | External |
Controllers Available | No |
Part Number | 135THMB4N |
Website | www.thermann.com.au |
Material
Tank Material | Vitreous Enamel |
---|
Technical Information
Tank Capacity | 135 ltr |
---|---|
Hot Water Delivery (First Hour) | 257 ltr |
Compliance Plate Location | Top Left hand side |
Star Rating | 4 star |
Hot Water Recovery Rate | 122L/h @ 45 Deg rise |
Element Angle | N/A |
Fuel Type | Natural Gas |
Gas Consumption | 29.5 MJ/h |
Cold Water Connections | 20 mm |
Hot Water Connections | 20 mm |
Gas Connection | 15 mm |
Pressure Information
Expansion Control Valve Setting | 1200 kPa |
---|---|
Maximum Supply Pressure - With ECV | 960 kPa |
Maximum Supply Pressure - Without ECV | 1120 kPa |
Pressure Limiting Valve Setting | 600 kPa |
Relief Valve Setting | 1400 kPa |
