STIEBEL ELTRON SHP-O 200L PLUS HEAT PUMP
Couldn't load pickup availability
Product Overview
Give Your Hot Water the Comfort Factor
This sleek heat pump integrates seamlessly into any home, providing reliable hot water no matter your current heating setup. By using ambient heat, it reduces reliance on gas, helping to create a cleaner environment. With its eco-friendly refrigerant and compatibility with your own PV system, it's both energy-efficient and environmentally conscious.
Simple, Convenient Control
Take full control of your hot water system with ease: simply connect the heat pump to the MyStiebel App. You can adjust settings via the app, even when you're away from home. Plus, your installer can make remote adjustments through the Servicewelt portal, often saving the need for on-site visits.
Product Details
Key Features
- The models fit seamlessly into any home setting with a compact and sleek design.

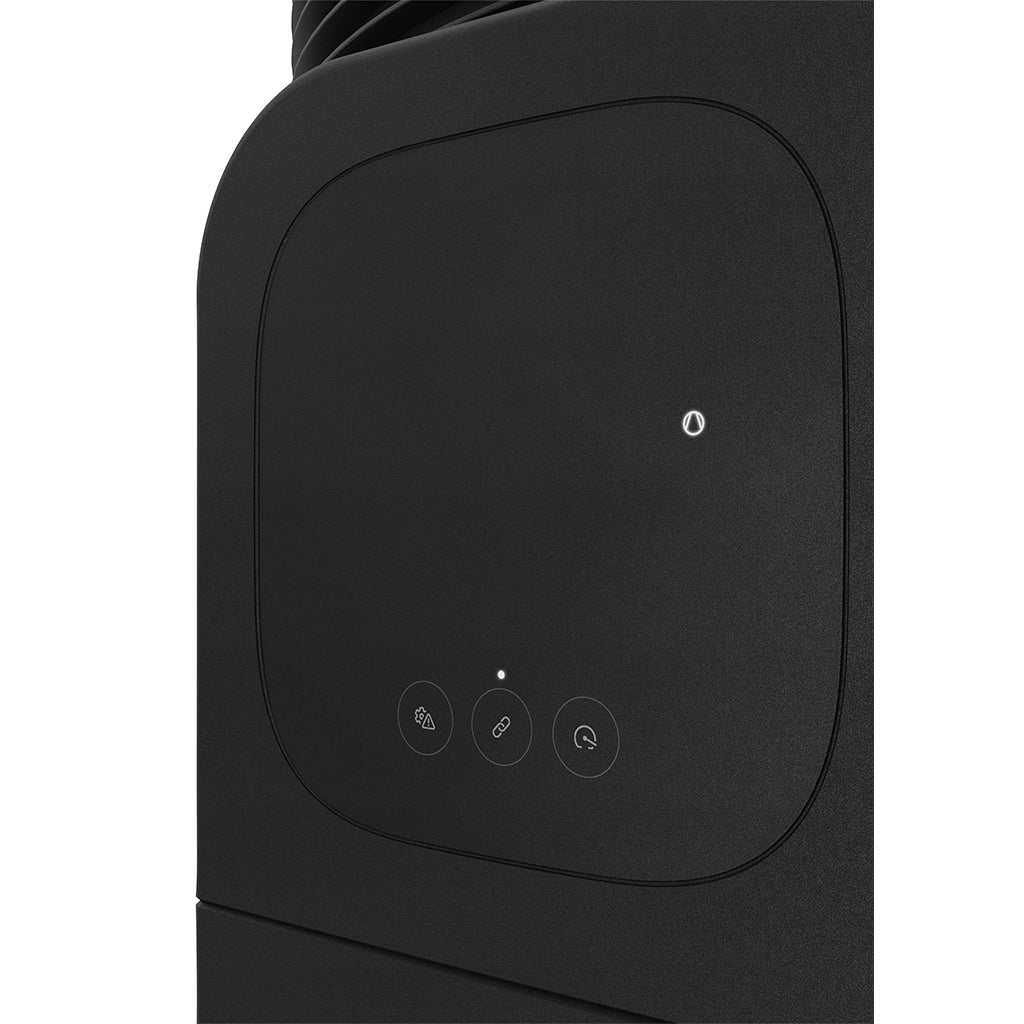

- Controls are simple with three buttons for boost, pairing, and emergency modes, and status LEDs for easy monitoring.
- Remote operation is possible via smartphone or tablet with advanced features like hot water boost for added convenience.
- Quiet operation thanks to no compressor in the airflow and optimised recirculation air mode.
- The heat pump uses natural refrigerant R290 for eco-friendly operation.
- The heat pump integrates easily with photovoltaic systems for using self-generated solar energy.
Service & Maintenance
- The three-part casing design allows fast servicing and access to all components.
- Fault notifications are sent via the app, and contractors can be contacted directly or emergency mode activated.
Efficiency
- The microchannel condenser is directly mounted on the cylinder for enhanced efficiency.
Installation
- Only a 10A connection is required
- Preconfigured settings for optimal out of the box performance
- SHP-O connects with photovoltaic systems for more efficient operation
The SHP-O 300 and SHP-O 200 Plus heat pumps provide reliable, efficient, and eco-friendly DHW heating, designed for modern homes looking to save energy and enhance comfort.
Technical Data
| Product | SHP-O 200 Plus | SHP-O 300 Plus |
| Height x Diameter (mm) | 1478 x 650 | 1903 x 650 |
| Weight (kg) | 98 | 117 |
| Min./Max. Application Limits (°C) | -6* / +43 | -6* / +43 |
| Nominal Capacity (L) | 200 | 300 |
| Max. DHW Temperature with Heat Pump (°C) | 65 | 65 |
| Type of installation | Outdoor or Indoor | Outdoor or Indoor |
| Minimum space requirements |
Indoor - 13m3 |
|
| Power Supply | 1/N/PE 220-240 V 50 Hz | 1/N/PE 220-240 V 50 Hz |
| Average Power Consumption, Heat Pump (kW) | 0.45 | 0.44 |
| Auxiliary Heater Power Consumption (kW) | 1.5 | 1.5 |
| Max. Operating Current (A) | 9.88 | 9.88 |
| Safety Valve Connection | G 1/2 | G 1/2 |
| Energy Efficiency Class | A+ | A+ |
| Refrigerant | R290 (152g) | R290 (152g) |
| GWP | 0.02 (IPCC) | 0.02 (IPCC) |
| Timer | Functionality via app | Functionality via app |
| Sound Pressure Level at 3m (dB(A)) | 40.7 | 40.7 |
| COP (EN16147 / A20) | 4.27 | 4.21 |
