Stiebel Eltron

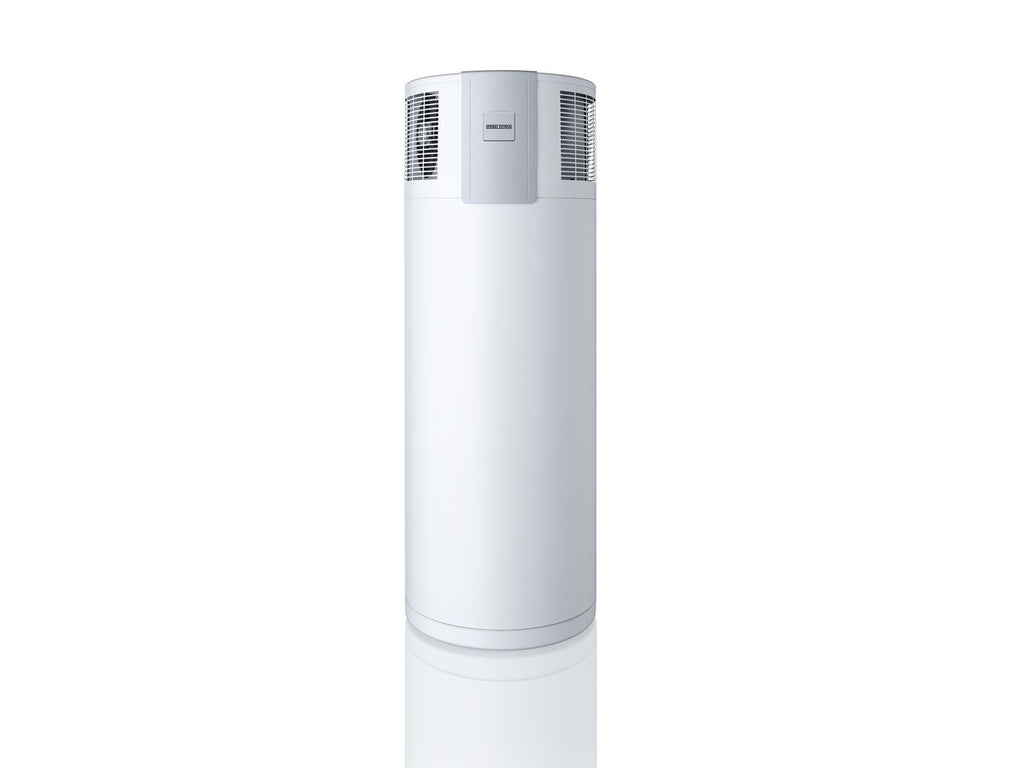

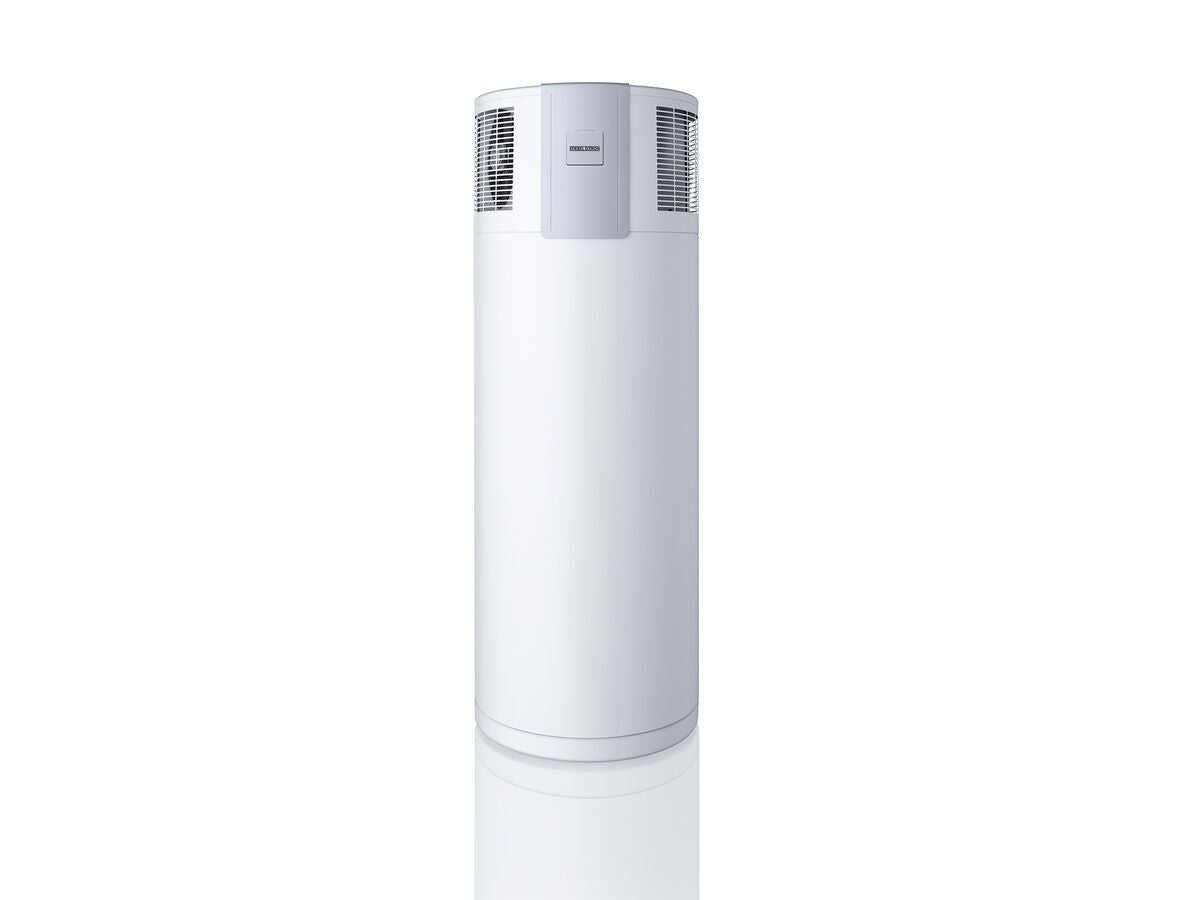

Stiebel Eltron Heat Pump - WWK302H
Regular price
$3,838.00
Regular price
Sale price
$3,838.00
Unit price
per
Shipping calculated at checkout.
Stiebel Eltron
302 Litre hot water heat pump with "smart" element, the STIEBEL ELTRON range set a new benchmark for heat pumps in the Australian market. Not only are they great looking but there are many new innovations incorporated in the sophisticated design.
Product Specifications
Size and Dimensions
| Height | 1937 mm |
|---|---|
| Approximate Weight (Empty) | 135 kg |
| Capacity | 302 ltr |
| Diameter | 690 mm |
Inclusions and Exclusions
| Inclusions | PTR Valve |
|---|
Features
| Includes PTR valve and reducing bush | |
| Made in Germany |
General Information
| Installation | Internal/External |
|---|---|
| Installation Requirement | Installation requirements as per AS/NZS3000 and AS/NZS3500.4.2 as well as local requirements |
| Product Type | HEAT PUMP |
| Website | https://www.stiebel.com.au/ |
Colour and Finish
| Colour | White |
|---|
Material
| Tank Material | Steel/Glass Enamel |
|---|
Technical Information
| Refrigerant Type | R134a |
|---|---|
| Water Connections | Rp3/4" (20mm) |
| Information | Please refer to installation manual. Indoor installation requires a clear space of 13m³ |
Pressure Information
| Maximum Supply Pressure - With ECV | 420 kPa |
|---|---|
| Maximum Supply Pressure - Without ECV | 500 kPa |
| Minimum Water Pressure | 200 kPa |
| Maximum Water Pressure | 800 kPa |
| Relief Valve Setting | 700 kPa |
Power Information
| Amps | 10 A |
|---|---|
| Electrical Supply | Single phase |
| Power Input | 550 W |
Warranty
| Warranty Information | - Cylinder Warranty: 5 years cylinder and condenser - Sealed System Warranty: 2 years sealed refrigeration system including compressor, evaporator, valves and associated pipe work - Spare Parts & Labour: 1 year all other components |
|---|
