Stiebel Eltron

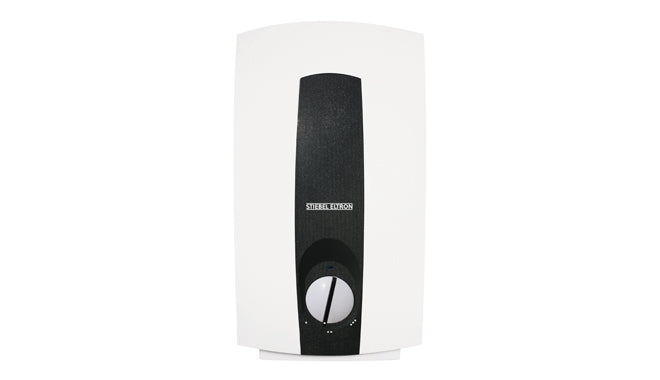

Stiebel Eltron DHCE8/60-60deg Single Phase 9.5kW

Regular price $898.00
Regular price Sale price $898.00
Sale Sold out
Shipping calculated at checkout.

Product Details

High quality design

  • Electronically controlled
  • Three selectable temperature outputs for greater convenience
  • Tubular heating element
  • WaterMark approved, Lic. No. WMKA21273, AS3498

Installation flexibility

  • Delivers up to 60 degree Celsius hot water
  • No safe tray or drainage required (check local regulations)
  • Space saving compact design

Efficiency

The DHCE compact water heater is electronically controlled which helps to save energy and water compared to older style hydraulically controlled instantaneous water heaters.

The compact design of the DHCE is ideal for close to the point of use installation and also helps save water and energy by reducing the lag time for hot water to arrive at the outlet.

Available in the following electrical size:

  • DHCE 8/60 - 9.5kW, 40 Amps, single phase 240V

Warranty

  • 5 Year full parts and labour domestic warranty*

Technical Data

Model number DHCE 8/60
Rated output (240V) 9.5kW
Rated current (240V) 40Amp
Phases 1/N/PE/AC 220..240V
Electrical Installation As per AS/NZS3000
Installation requirements AS/NZS3500.4.2 & local requirements
Switch on flow rate (minimum flow rate required to switch on the water heater) 1.5L/min
Permissible operating pressure 1000kPa
Temperature adjustment 40°C 50°C 60°C
IP Rating IP25
Height 360mm
Width 200mm
Depth 110mm
Weight (filled with water) 2.45kg
Colour white
Nominal capacity 0.45L
Approvals WaterMark Lic No. WMKA21273, AS3498
For one/several draw off points Yes/Yes
Heating system Tubular
Electronic flow rate control No
Electronic air detection system No
Accepts pre-heated water (solar) No
Programmable temperature No


Temperature Rise (240 V) DHCE 8/60
4 L/min +33 °C
5 L/min +27 °C
6 L/min +22 °C
7 L/min +19 °C
9 L/min +15 °C
