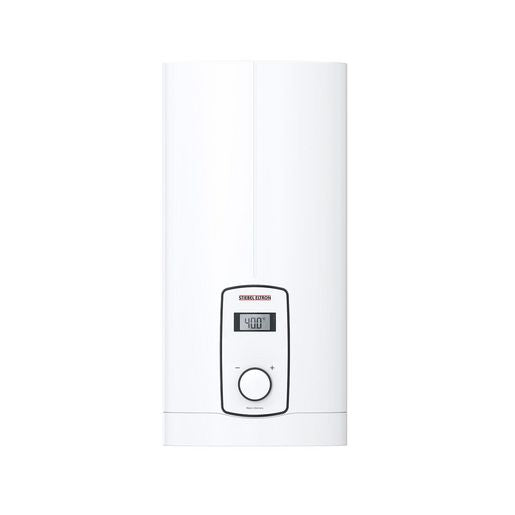

Product Overview
With the DHB-E LCD instantaneous water heater, accurate temperature settings are no longer a problem, thanks to the LCD controller. This allows direct accurate continuous flow temperature delivery selection between 20 and 60 °C. With 3i technology for high efficiency and output, the DHB-E LCD provides a reliable and constant supply of hot water.
Product Details
High quality engineering
- Made in Germany
- LCD Controller
- Bare wire element is suitable for hard and soft water areas
- WaterMark Lic No. WMKA00301, AS3498
- Electronically controlled
Flexible installation
- Space saving design
- No safe tray or ventilation required
Available in three electrical sizes:
- DHB-E 13 LCD - 14.5kW, 20.2 Amps per phase, three phase 415V
- DHB-E 18 LCD - 19.4kW, 27 Amps per phase, three phase 415V
- DHB-E 27 LCD - 28kW, 38.9 Amps per phase, three phase 415V
Warranty
- 7 Year full parts and labour domestic warranty*
Technical Data
| Product |
DHB-E 13 LCD |
DHB-E 18 LCD |
DHB-E 27 LCD |
| Article number |
236747 |
236748 |
236749 |
| Rated output (415V) |
14.5kW |
19.4kW |
28kW |
| Rated current (415V) |
20.2Amp |
27Amp |
38.9Amp |
| Phases |
3/PE |
3/PE |
3/PE |
| Electrical Installation |
As per AS/NZS3000 |
| Installation requirements |
AS/NZS3500.4.2 & local requirements |
| Switch on flow rate (minimum flow rate required to switch on the water heater) |
2.5L/min |
2.5L/min |
2.5L/min |
| Max. permissible pressure |
1 MPa |
1 MPa |
1 MPa |
| Temperature adjustment |
20-60°C |
20-60°C |
20-60°C |
| IP Rating |
IP25 (IP24 at electrical connection finished walls) |
IP25 (IP24 at electrical connection finished walls) |
IP25 (IP24 at electrical connection finished walls) |

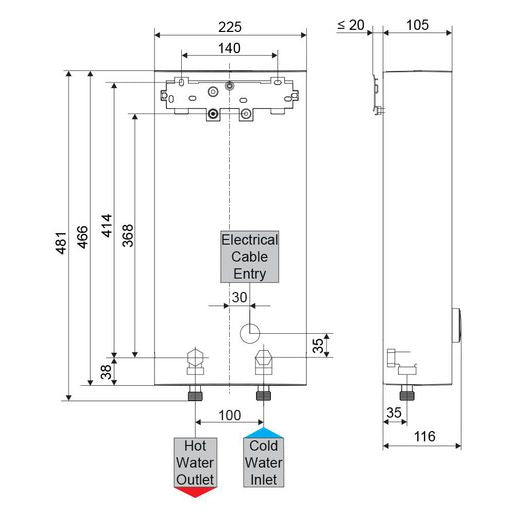

| Height |
466mm |
466mm |
466mm |
| Width |
225mm |
225mm |
225mm |
| Depth |
116mm |
116mm |
116mm |
| Weight |
2.9kg |
2.9kg |
2.9kg |
| Colour |
white |
white |
white |
| Nominal capacity |
0.4L |
0.4L |
0.4L |
| Approvals |
WaterMark Lic No. WMKA00301, AS3498 |
| For one/several draw off points |
Yes/Yes |
Yes/Yes |
Yes/Yes |
| Heating system |
Bare wire |
Bare wire |
Bare wire |
| Programmable temperature |
No |
No |
No |
| Accepts pre-heated water (solar) |
Yes (incoming hot water must not exceed 55°C) |
