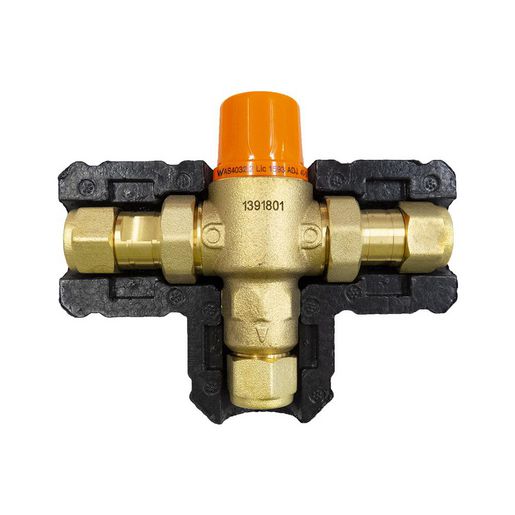

Tempering Valve HPS & Insulation 15mm
Tempering Valve HPS & Insulation 15mm is suitable for solar + instantaneous hot water systems. TVA 15CHP valves can also be used in all water heater applications as per TVA installation instructions.
- Have been upgraded to include high-temperature components
- Maximum hot water supply temperature 99°C
- More accurate control: ± 3°C from set temperature (to AS4032.2)
- Fast response to pressure fluctuations
- Cast DR brass body
- Advanced polymers for greater resistance to calcium deposits
- Integral 60 mesh stainless steel line strainers
- Integral non return valves
- Stainless steel springs
- O-ring seal union connectors
- Tamper proof adjustment
- Special adjusting tool supplied
- Seasonal adjustments not required
- Will supply 50°C mix with 55°C hot supply
Size and Dimensions
Size: 15mm
Warranty
Product Warranty: 2 Years
A tempering valve works as amixing tool to ensure that the user is not harmed by scalding hot water when it comes out of the faucet. The tempering valve does this bycombining both hot and cold water to produce the correctwater temperature as it isreleased from a particular outlet. Tempering valves are mandatory for all new builds, renos and replacement hot water systems. Stored water must be at 60 degrees to prevent legionella breeding. The tempering valve is required to reduce this temperature to a maximum of 50 degrees.
